Static-Control ESD Conductive Epoxy for Technical Facilities
Static-control conductive epoxy for electronics, pharmaceutical, and aerospace facilities — copper-grid grounding and dissipative topcoats.
What is ESD Conductive Epoxy?
ESD conductive epoxy is a specialized floor system that controls static electricity discharge — critical in environments where a single static event can destroy electronic components, ignite flammable atmospheres, or compromise medical equipment.
The system uses copper grounding strips laid in a pattern across the slab, embedded under a conductive epoxy base with carbon-fiber or carbon-black additives, finished with a static-dissipative topcoat. The whole floor is connected to building ground and tested with a megohmmeter to confirm the resistance falls in the correct range for your facility’s spec — typically 10⁴-10⁹ ohms depending on whether you need conductive or dissipative behaviour.
We install to NFPA 99 (healthcare) and EOS/ESD Association guidelines and provide full compliance documentation including resistance test results. As Toronto’s full-spectrum epoxy flooring contractor, we install ESD systems alongside our institutional and medical epoxy work for hospitals, labs, and electronics facilities.
What’s Included
- Static-control spec review with your facilities team
- Diamond-grind substrate prep
- Copper grounding strip grid laid to drawing
- Conductive 100% solid epoxy base coat with carbon additives
- Static-dissipative topcoat
- Megohmmeter resistance testing at multiple points
- Documented compliance certificate
- Cleanroom-compatible install sequencing where required
Our ESD Epoxy Results in Toronto
Why Toronto Picks Us for ESD Epoxy
NFPA 99 Compliant
Spec'd to NFPA 99 and EOS/ESD Association guidelines for hospital, electronics, and aerospace work.
Verified With Testing
Megohmmeter resistance testing across the finished floor — documented before handover.
Cleanroom Compatible
Seamless, low-particulate finish suited to cleanroom and pharmaceutical operations.
Full Documentation
Resistance test results, copper grid layout, and compliance certificates.
How ESD Epoxy Works
Static Spec Review
We confirm the target resistance range (10⁴-10⁹ ohms) for your facility.
Substrate Prep
Diamond grind and detailed prep — conductivity depends on proper bond.

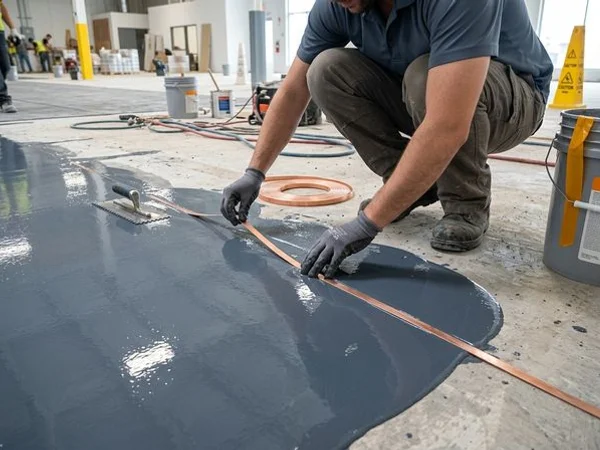

Copper Grid + Conductive Base
Copper grounding strips laid in pattern, then conductive epoxy base over top.

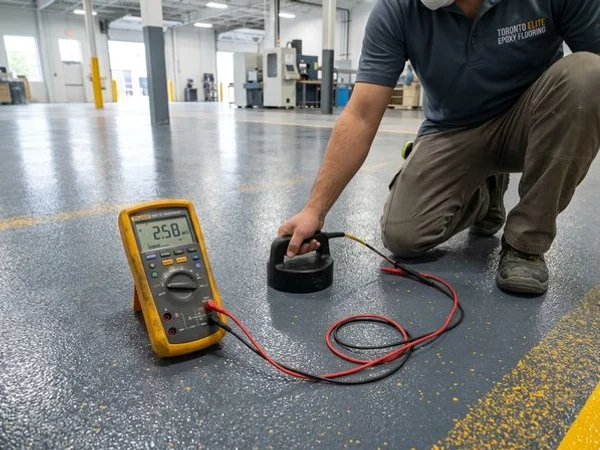

Test + Certify
Megohmmeter testing across the floor and documentation for compliance.
Ready for a Free On-Site Assessment?
Same-day quotes across the GTA. Lifetime warranty in writing.
What Customers Say About Our ESD Epoxy

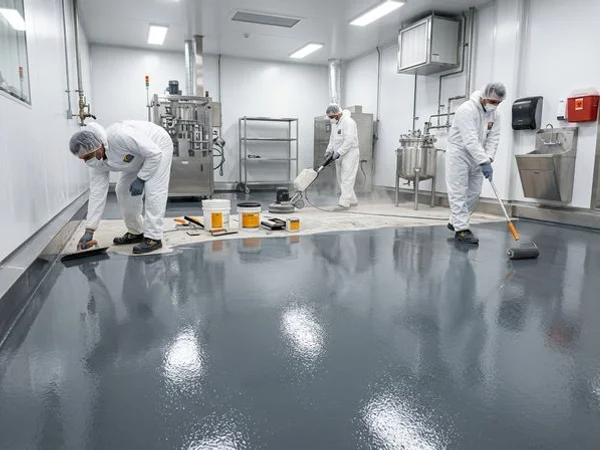

"Pharmaceutical cleanroom floor — seamless, ESD spec, and the resistance testing came back exactly to spec."
"Electronics assembly facility. ESD floor passed all certification testing first time, documentation was tight."
"Hospital OR ESD floor. NFPA 99 compliant, on time, under budget."
ESD Epoxy FAQs
What's the difference between ESD conductive and ESD dissipative?
Conductive floors have lower electrical resistance (10⁴-10⁶ ohms) for active grounding, dissipative floors have higher resistance (10⁶-10⁹ ohms) for controlled static bleed. We spec the system to your facility's target range.
Do you do the copper grounding grid?
Yes. Copper grounding strips are laid in a pattern that matches the facility, connected to building ground, and embedded under the conductive epoxy base. All part of the install.
How do you verify the floor is working?
Megohmmeter resistance testing across the finished floor at multiple points. We document the resistance readings and provide a compliance certificate.
Can you install for a cleanroom?
Yes. We use seamless, low-particulate systems suited to ISO Class 7 and similar cleanroom environments. Sequenced installation keeps adjacent areas operational.
What facilities need ESD flooring?
Electronics manufacturing and assembly, pharmaceutical cleanrooms, aerospace component facilities, hospital operating rooms (NFPA 99), data centres, and any facility where static discharge can damage equipment or pose a fire risk.
